Connector > Audio Jack & TRS Connector
| PART NUMBER | PRODUCT | DESCRIPTION | COLOR | STACK | CONTACT | CONFIG |
3D Model Drawing Catalog |
|---|---|---|---|---|---|---|---|

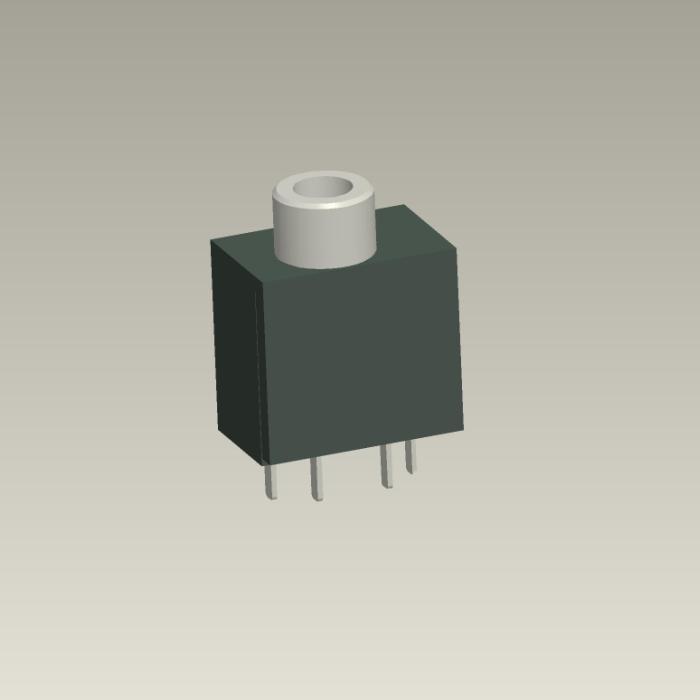

| JP001-P3A1AB | Stereo Jack | Phone Jack, DIP Type, 3 Pins, DIA. 3.60mm | Black | No | 3 | DIP |
CALL
 CALL
|
| JP001-P3B3AB | Stereo Jack | Phone Jack, Straight Type, 3B3AB, Center Pin 3.5mm | No | 5 | DIP |
CALL
CALL
|
|

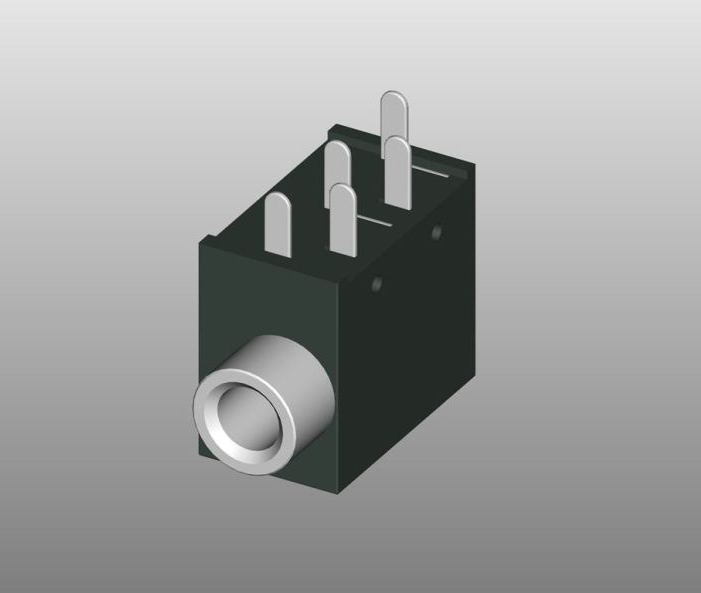

| JP001-Pa2A3AA | Stereo Jack | Phone Jack, Right Angle SMT, 2A3AA, Center Pin 2.6mm | 2 | R/A |
CALL
CALL
|
||
| JP002-P3A1AB | Stereo Jack | Phone Jack, Hole DIAMETER: 3.6mm, DIP Type | Black | No | 1 | DIP |
CALL
CALL
|

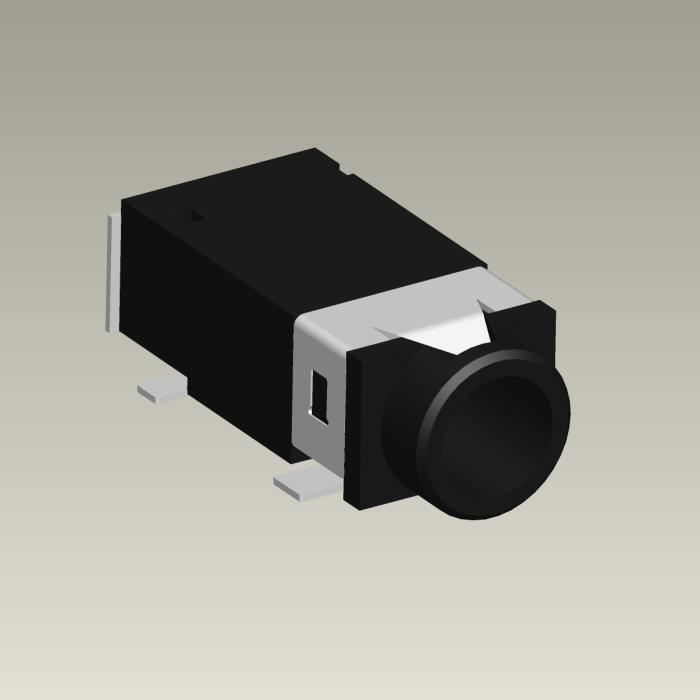

| JP002-Rt3A1A | Stereo Jack | Phone Jack, Right Angle SMT, 3A1A, Center Pin 3.5mm | N/A | R/A SMT |
CALL
CALL
|
||
| JP003-Pa3A1AA | Stereo Jack | Phone Jack, Right Angle SMT, 3A1A , Center Pin 2.6mm | Black | No | 3 | R/A |
CALL
CALL
|
| JP007-Pa3B3-XXX | Stereo Jack | Phone Jack, Right Angle SMT, 3B3, Center Pin 3.6mm | N/A | N/A | 8 | R/A |
CALL
CALL
|
| JP007A-Pa2B3EB-XX | Stereo Jack | Phone Jack, 2 Port, Right Angle Type, Center Pin 3.6mm, Color Option | Option | Yes | 9 | R/A |
CALL
CALL
|
| JP009-Rt3B3AB | Stereo Jack | Phone Jack, R/A SMT, Center Pin DIA. 3.60mm | Black | No | R/A SMT |
CALL
CALL
|
|
| JP009-RtXXXAB | Stereo Jack | Phone Jack, R/A SMT, Center Pin DIA. 3.60mm | Black | No | R/A SMT |
CALL
CALL
|
Page :
