Connector > Mini PCI Express
| PART NUMBER | PRODUCT | DESCRIPTION | PITCH | CONFIG | PIN COUNT |
3D Model Drawing Catalog |
|---|---|---|---|---|---|---|
| MINIPCIE500X-Rt52Gft-X | Mini PCI Express | MiniPCI Express Connector, R/A SMT, 52Pin | 0.80 mm | R/A SMT | 52 |
CALL
 CALL
|
| MINIPCIE6001-Rt52Gf | MiniPCI Express | Mini PCI Express Connector, R/A SMT Type, 52 Pins, Body Height 4.0mm | 0.80 mm | R/A SMT | 52 |
CALL
|
| MINIPCIE6001-Rt52Gf-X | Mini PCI Express | Mini PCI Express Connector, R/A SMT Type, 52 Pins, Body Height 4.0mm, Hardware Option | 0.80 mm | R/A SMT | 52 |
CALL
CALL
|
| MINIPCIE6002-Rt52Gf | MiniPCI Express | Mini PCI Express Connector, R/A SMT Type, 52 Pins, Body Height 5.2mm | 0.80 mm | R/A SMT | 52 |
CALL
CALL
|
| MINIPCIE6002-Rt52Gf-X | Mini PCI Express | Mini PCI Express Connector, R/A SMT Type, 52 Pins, Body Height 5.2mm, Hardware Option | 0.80 mm | R/A SMT | 52 |
CALL
CALL
|

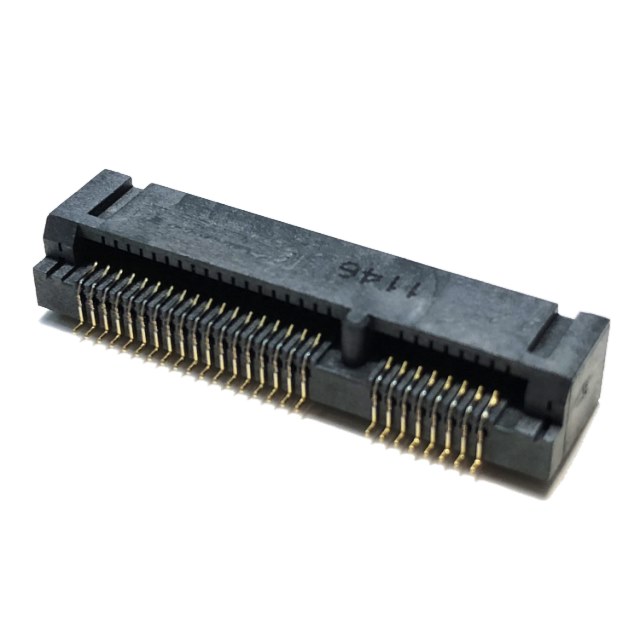

| MINIPCIE6002-Rt52Gf_JPG | Mini PCI Express |
 CALL
CALL
|
||||
| MINIPCIE6003-Rt52Gf | MiniPCI Express | Mini PCI Express Connector, R/A SMT Type, 52 Pins, Body Height 5.6mm | 0.80 mm | R/A SMT | 52 |
CALL
|
| MINIPCIE6003-Rt52Gf-X | Mini PCI Express | 0.80 mm | R/A SMT | 52 |
CALL
|
|

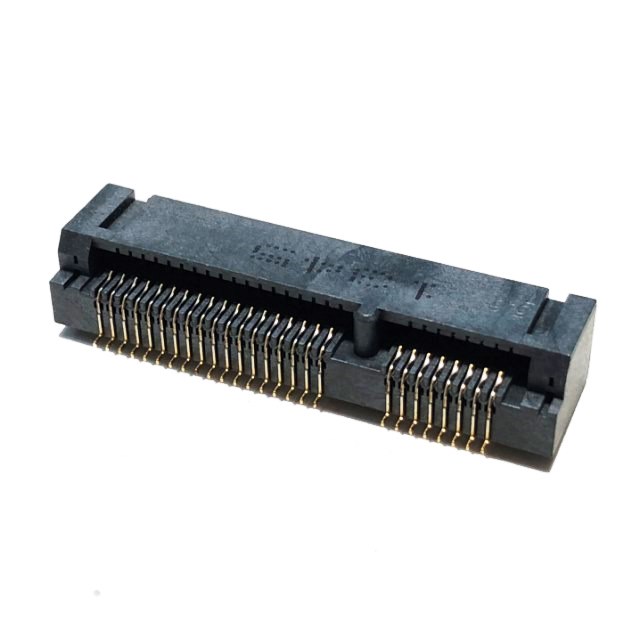

| MINIPCIE6003-Rt52Gf_JPG | Mini PCI Express |
 CALL
CALL
|
||||
| MINIPCIE6004-Rt52Gf | MiniPCI Express | Mini PCI Express Connector, R/A SMT Type, 52 Pins, Body Height 6.0mm | 0.80 mm | R/A SMT | 52 |
CALL
CALL
|
Page :
