Connector > DC Power Jack
| PART NUMBER | PRODUCT | DESCRIPTION | CENTER PIN | COLOR | CONTACT | CONFIG | KINKED LEGS |
3D Model Drawing Catalog |
|---|---|---|---|---|---|---|---|---|
| JK-5525A | DC Jack | DC Power Jack 5.5*2.5mm | 2.5 mm | Black |
CALL
 CALL
|
|||

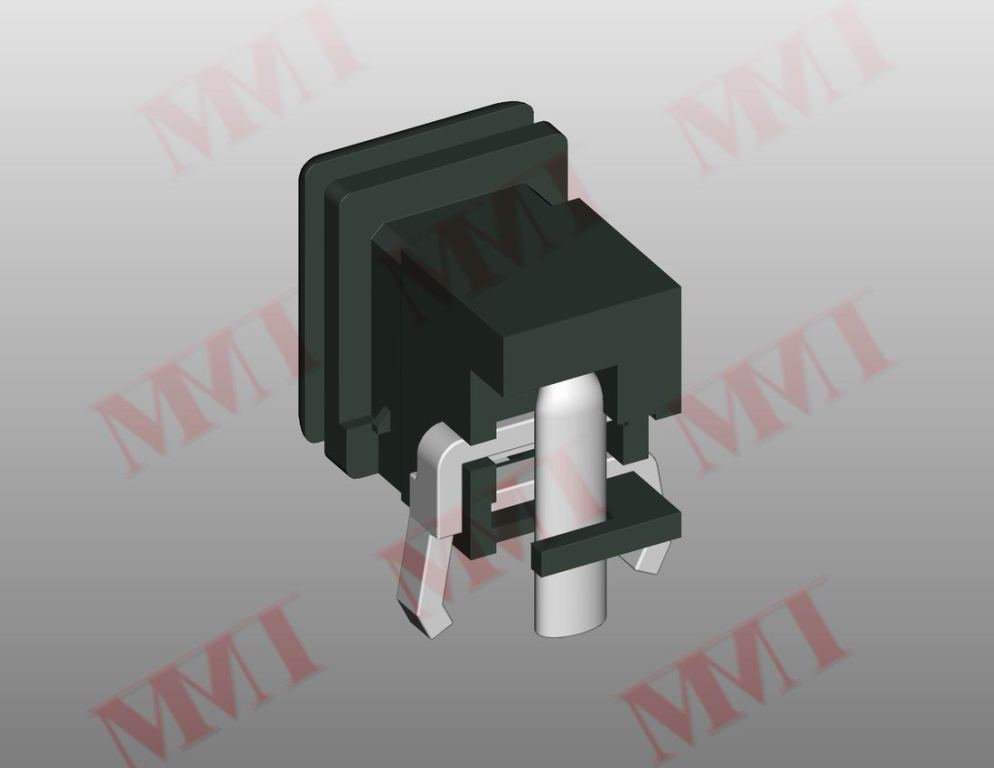

| JK003-Pa12AX | DC Jack | DC Power Jack, PCB Type, Right Angle, Center Pin 2.00mm or 2.50mm | 2.00/2.50 mm | Black | 3 | R/A |
CALL
CALL
|
|
| JK003-PLUG | DC Jack | DC Power Plug | 3.50 mm | Black | N/A | N/A | No |
CALL
CALL
|

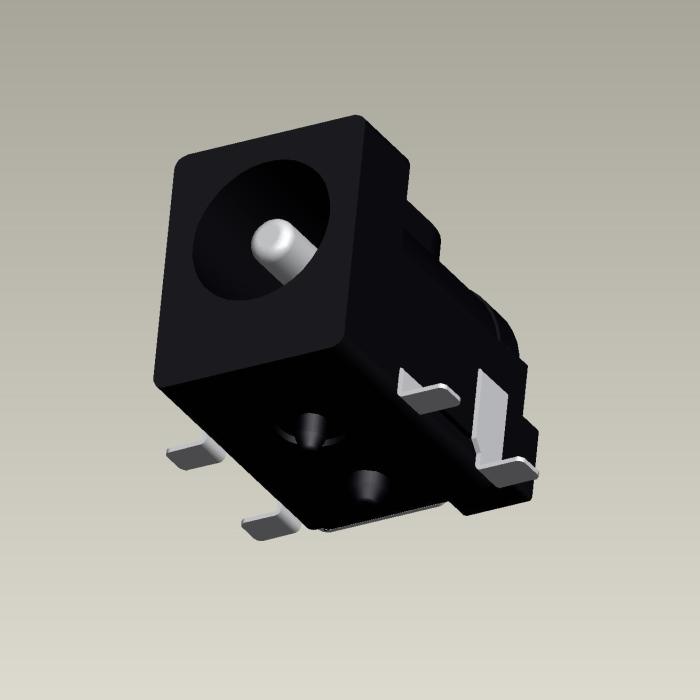

| JK003-Rt12CX | DC Jack | DC Power Jack, R/A SMT, Class of The Center Pin Option | 2.00/2.50 mm | R/A SMT |
CALL
CALL
|
|||

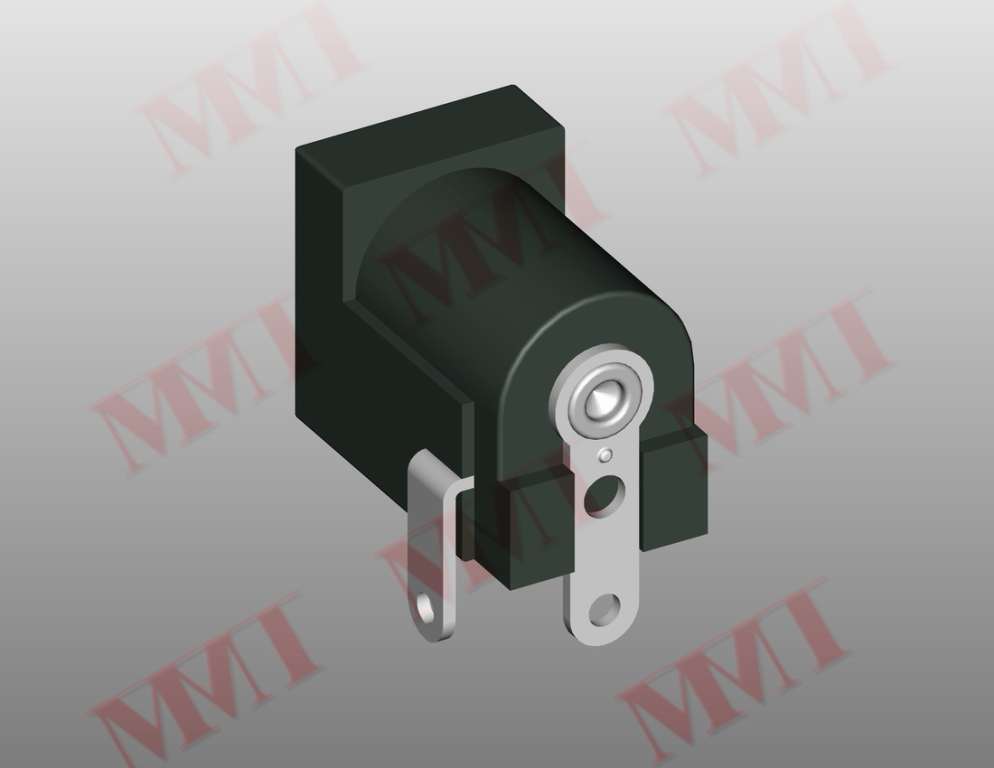

| JK003-W12AX | DC Jack | DC Power Jack, Straight Type, Center Pin Option | 2.00/2.50 mm | Black | 2 | R/A | No |
CALL
CALL
|
| JK003-Wa12AA | DC Jack | DC Power Jack 2.5mm R/A | 2.50 mm | Black | 2 | R/A | No |
CALL
|
| JK003-Wa12AA-K | DC Jack | DC Power Jack 2.5mm R/A w/Kinked Pins | 2.50 mm | Black | 2 | R/A | Yes |
CALL
CALL
|
| JK003-Wa12AB | DC Jack | DC Power Jack 2.0mm R/A | 2.00 mm | Black | 2 | R/A | No |
CALL
|
| JK003-Wa12AB-05 | DC Jack | DC Power Jack, Wiring Type, Right Angle, White, Center Pin DIA. 2.00mm | 2.00 mm | White | R/A | No |
CALL
CALL
|
|
| JK003-Wa12AB-K | DC Jack | DC Power Jack 2.0mm R/A w/Kinked Pins | 2.00 mm | Black | 2 | R/A | Yes |
CALL
CALL
|
